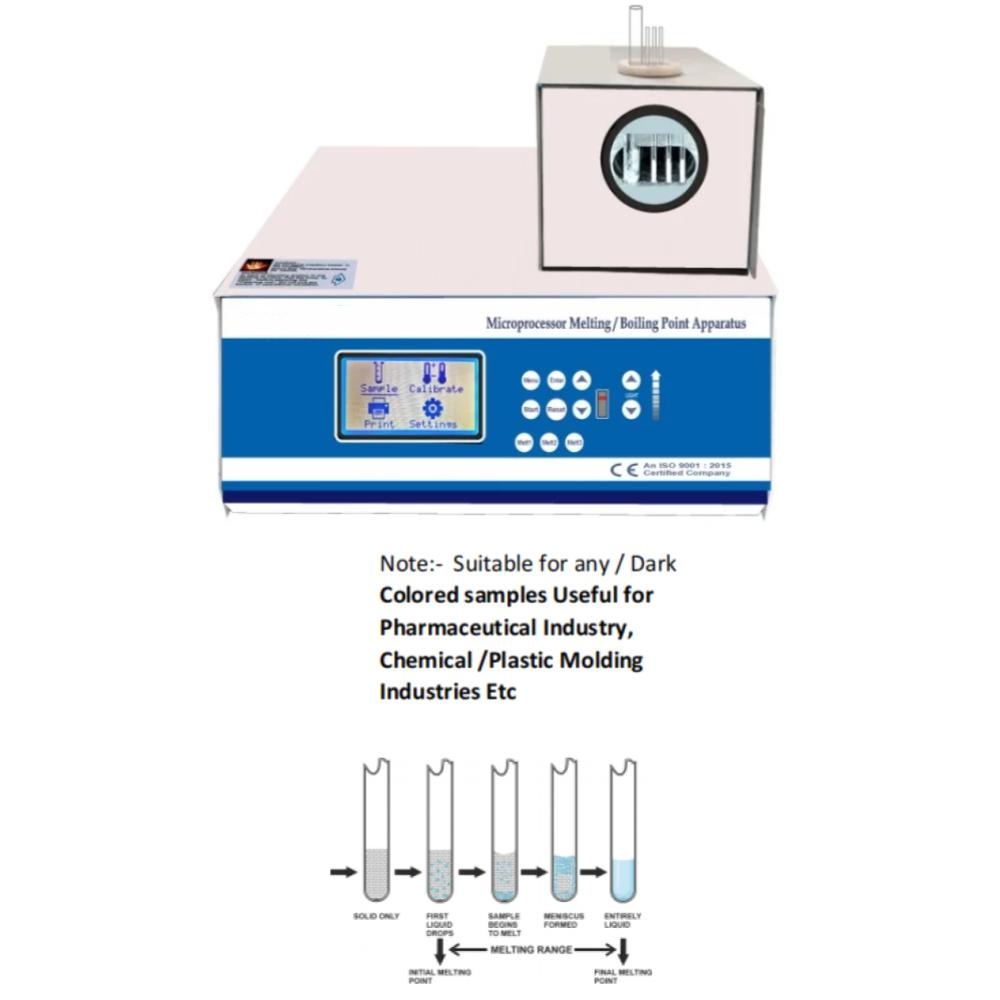

Microprocessor Melting Point Apparatus DR 0973
The instruments basically consists of a Miniature Furnace with Automatic Ramp Rate of Heating, Microprocessor Controlled, Visual facility is provided through Magnifying display of melting operation under front & rear illumination controlled (Light intensity adjustable) with the help of magnifying glass. Melting point reading put on hold as soon as the melting of sample visualize, by activating to press the "MELT" key. The instrument gives audio & visual indications & reading is protected form power failure till "RESET" is not activated. The Furnace becomes off and the cooling fan ON automatically. Melting Temperature of the sample remains displayed on the panel till the "RESET" switch is operated. Suitable for Dark Coloured / all kind or any coloured Samples. Temp. effect on viscosity / flow points and molecular weights by Rast's method with suitable accessories can be measured.
- Digital Melting Point Apparatus with resolution 1 Deg C to measure melting point/ boiling point of solid and liquid samples.
- Temperature range up to 300ºC with 3 digit LED display.
Technical Specifications :ÂÂ
| Model | DR 0973 |
| Temp. Range | Ambient to 350°C |
| Display | 3 Digits LED |
| Resolution | 1°C |
| Temp. Sensor | Grade "A" PT- 100, Platinum Sensor |
| Sample Capacity | 3+1 provision for Samples (one 6mm) Test Tube, for the determination of Boiling Point & Melting Point |
| Application Area | Miniature Furance Module |
| Application | Suitable for Boiling & Melting Point |
| Melitng View | Front & Rear Glare - free illumination and Large Magnifier for Stain free |
| Observation of melting operation, Melting / Boiling point reading is to be hold | |
| on by activating the "HOLD" key & reading is protected from power failure till | |
| "RESET " is not activated. | |
| Heating Control | Microprocessor controller closed loop PID, Automatic Ramp Rate of Heating |
| Ramp Rates | 2°C to 10°C / minutes (Selectable Auto -Low- High), |
| Power Supply | 230 V ± 10 % AC, 50 Hz. |
| Dimension, Weight | 270 x 330 x 160 mm (LxBx H), 8.5 KG |
| Accessories | Melting / Boiling Tube- 05 pcs, 25mm capillaries - 100 pcs, Cleaning Wire, Main lead |
- Product Code: DR 0973
